ماژول WeMos D1 mini ESP12 ESP8266

ماژول WIFI قابل تنظیم به صورت کلاینت و سرور از گروه ES8266 ارسال اطلاعات از طریق پروتکل TCP/IP Wemos D1 Mini WiFi Development Board Micro USB 3.3V Based On ESP-8266EX 11 Digital Pin
دریافت دیتا شیت

AT Instruction - At Command

معرفی ماژولESP8266

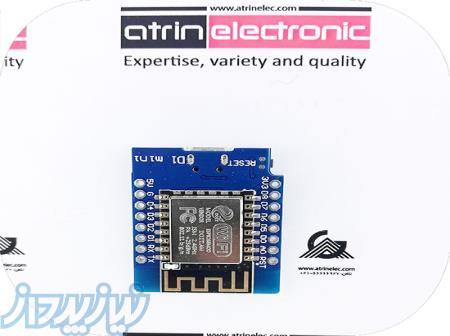

This is D1 mini, it is a mini WIFI board based on ESP-8266EX 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported except D0 1 analog input 3.3V max input a Micro USB connection

:How to get started in

Setup driver

Before you use miniD1 boards, you need setup CH340g driver

Python

On Windows you need install Python 2.7.10

On Linux & MAC OSX, you don't need install it, comes preinstalled with OS

Installing Hardware package

There is two ways to install hardware package, Boards Manager or GIT Installing with Boards Manager

Starting with 1.6.4,for Arduino allows installation of third-party platform packages using

Boards Manager. We have packages available for Windows, Mac OS, and Linux 32 and 64 bit

<1>. Install for Arduino 1.6.7 from the for Arduino website

<2>. Start for Arduino and open Preferences window

<3>
into Additional Boards Manager URLs field. You can add multiple URLs, separating them with commas

<4>. Open Tools→Board:xxx→Boards Manager and install esp8266 by ESP8266

Community (and don't forget to select your ESP8266 board from Tools > Board menu after installation

(Installing with GIT (Recommend We recommend using GIT to install Hardware package

you can always get the latest version of it
