ماژول ESP-07
-
آگهی رایگان
-
کدآگهی
1098267
-
بازدید
93
-
نام
آترین الکترونیک
-
دسته بندی
الكترونيك
-
تلفن
09120786892
-
بروزرسانی
شنبه 21 مرداد 1402
-
قیمت
131,300
-
شهر
یزد
-
آدرس
تهران خیابان جمهوری بعد از پل حافظ پاساژ امجد طبقه اول واحد 16

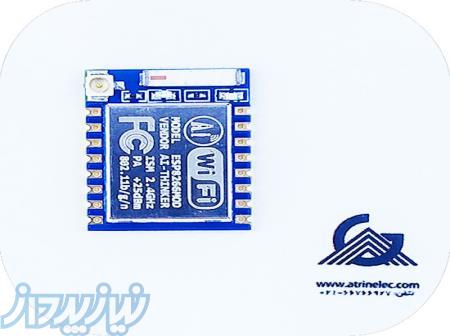

ماژول WIFI قابل تنظیم به صورت کلاینت و سرور از گروه ES8266 ارسال اطلاعات از طریق پروتکل TCP/IP ESP8266 serial WIFI model ESP-07 Authenticity Guaranteed
دریافت دیتا شیت
AT Instruction - At Command
معرفی ماژولESP8266
Firmware can be achieved
Convenient development environment, free virtual machine and familiar with the Linux system, directly in the Windows environment to develop, save development time, ahead of the market to seize
Add AT + CLDSTART, start the cloud connection, the default parameters for the security can Ai-Cloud cloud platform, the implementation of this directive, the system will automatically maintain the cloud connection and heartbeat package, and disconnected. The system handles all protocol layers
AT + CLDSTOPStop the cloud connection. Release all cloud-related system resources
AT + CLDSEND =Send data to the cloud
Parameter is the data length, the implementation of this command, the system will return ">", then you can send a certain length of data
Data reception
The following are the same as the "When the cloud data comes, you will receive + CLD
Len is the data length, data is the specific data
Smart connection
AT + CWMODE = 1
AT + SMARTSTART = 1
This is done using ESP_TOUCH technology
(1.2.0 version can be directly after the command "AT + CWSTARTSMART", do not need to set the parameters, SmartConfig type can be automatically obtained, no need to set
Added to join the cloud family group instructionsAT + LANSTART, Can be easily joined the cloud family group, andAPPEnd connection to control
Added exit to cloud family group instructionsAT + CLDUNBIND, Module cloud control transfer? A command to exit the cloud family group, no longer bound by binding
AddedWPSFeatures,AT + CWWPSSTARTDirectly openWPS, More convenient configurationWiFiconnection
AddedATinstructionAT + CIOWRITECan be setIOState, an instruction can be controlled differentlyIOThe high and low levels
AddedATinstructionAT + CIOREADCan be readIOState, an instruction can be read differentlyIOstatus
AddedATinstructionAT + CSYSHEAPYou can view the rest at any timeRAMSize, the remaining space to grasp
AddedATinstructionAT + CIOADCCan be readADC, The input voltage range is0 ~ 1V
