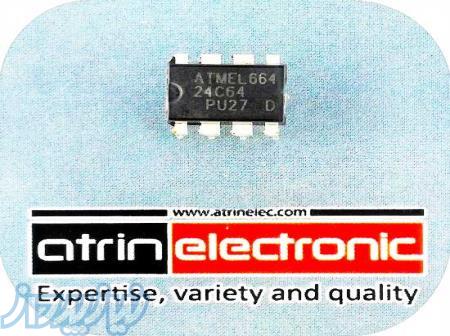

AT24C64 COPY ATMEL 664

آگهی رایگان
کدآگهی 1101951
بازدید 90
نام آترین الکترونیک
دسته بندی الكترونيك
تلفن 09120786892
بروزرسانی يکشنبه 19 شهريور 1402
قیمت 9,200
شهر یزد
آدرس تهران خیابان جمهوری بعد از پل حافظ پاساژ امجد طبقه اول واحد 16

ایتوپرام 64 کیلو بیت ،8 کیلو بایت با رابط I2C دوسیمه ای سی (EEPROM 64-Kbit (8192 x 8 کپی،کیفیت معمولی

دریافت دیتا شیت

Description

The AT24C64 provides 65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 8192 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common 2- wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C64 is available in space saving 8-pin JEDEC PDIP packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 2.7V (2.7V to 5.5V) – 1.8 (VCC = 1.8V to 5.5V) versions

Features

( Low-Voltage and Standard-Voltage Operation – 2.7 (VCC = 2.7V to 5.5V) – 1.8 (VCC = 1.8V to 5.5V •

Low-Power Devices (ISB = 2 µA at 5.5V) Available •

Internally Organized 8192 x 8 •

2-Wire Serial Interface •

Schmitt Trigger, Filtered Inputs for Noise Suppression •

Bidirectional Data Transfer Protocol •

100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Clock Rate •

Write Protect Pin for Hardware Data Protection •

(32-Byte Page Write Mode (Partial Page Writes Allowed •

(Self-Timed Write Cycle (10 ms max •

High Reliability – Endurance: 1 Million Write Cycles – Data Retention: 100 Years •

Automotive Grade and Extended Temperature Devices Available •

8-Pin JEDEC PDIP Packages •

عبارت های کلیدی : آیسی آیسی ایتوپرام AT24C64 COPY ATMEL 664

مشاهده آگهی
