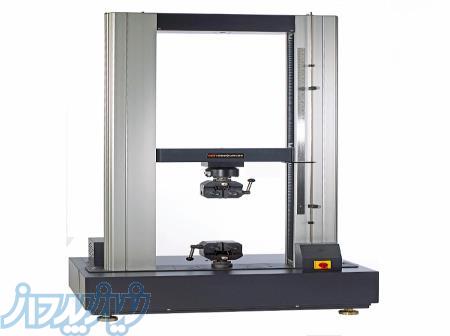

UNIVERSAL TENSILE MACHINE

Model TM-500-M

Standard Number ISIRI 6621-1, ISIRI 7276, ISIRI 14471-2 , ASTM D638, ASTM E8, ISO 527-1

Applications Cellulose, Textile, Polymer, adhesives, Wood

Maximum force 20 KN (2000 Kg)

Speed rang 5 - 80 mm/min

Cross head travel 600 mm by reading accuracy 0.001 mm

Drive Electric-motor and inverter

Columns 2 rod Ball-screw

Monitoring 3.5 inch multi-color touch screen HMI Controller

Processor 8000 series PLC

Column Spacing 350 mm

Grips 1 set tensile wedge grips on machine

Power Supply 220V 5A
