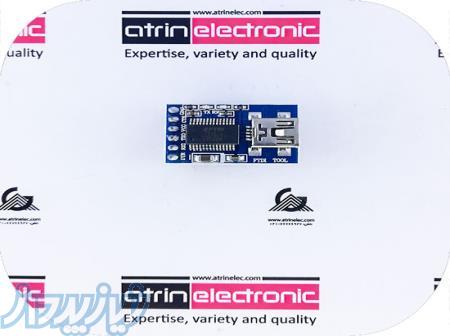

ماژول مبدل FTDI Basic Breakout USB TTL 6PIN FT232RL
آگهی رایگان
بروزرسانی :شنبه 21 مرداد 1402
مبدل یو اس بی به سریال TTL FTDI Basic Breakout USBTTL 6PIN 5V Module MultiWii Mini USB FT232RL
دریافت دیتا شیت
برقراری ارتباط بین میکرو کنترلر و کامپیوتر از طریق USBبه وسیله ای سی FT232
Description
With a miniusb cable,make the operation earlier
FTDI Basic 5V USB to TTL upload tool, can be connected with MultiWii flight control board directly, easy to upgrade or modify
This is the newest revision of our FTDI BASIC. It now uses a SMD 6-pin header on the bottom, which makes it smaller and compact. Functionality has remained the same
This is a basic breakout board for the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with official and cloned 5V boards. It can also be used for general serial applications. The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any board that has the reset pin brought out to a 6-pin connector
The pins labeled BLK and GRN correspond to the colored wires on the FTDI cable. The black wire on the FTDI cable is GND, green is CTS. Use these BLK and GRN pins to align the FTDI basic board with your target
This board has TX and RX LEDs that make it a bit better to use over the FTDI cable. You can actually see serial traffic on the LEDs to verify if the board is working
This board was designed to decrease the cost of development and increase ease of use (the auto-reset feature rocks!). Our boards and LilyPads use this type of connector
One of the nice features of this board is a jumper on the back of the board that allows the board to be configured to either 3.3V or 5V (both power output and IO level). This board ship default to 5V, but you can cut the default trace and add a solder jumper if you need to switch to 3.3V
