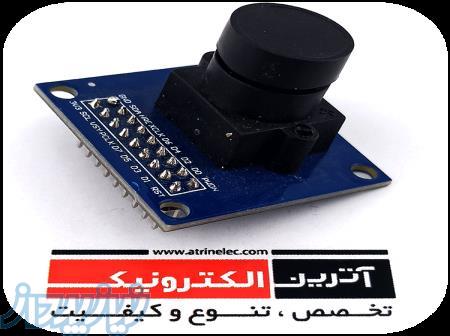

ماژول دوربین OV7670

ماژول دوربین 0.3 مگا پیکسل با رزولیشن 640x480 fh و امکانات متنوع Camera Module 1/6-Inch 0.3-Megapixel دریافت دیتا شیت

Features

Optical size 1/6 inch

Resolution 640x480 VGA

Onboard regulator, only single 3.3V supply needed

Standard 0.1inch (2.54mm) pin pitch header connector

Mounted with high quality F1.8 / 6mm lens

Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and

YCbCr (4:2:2) formats High sensitivity for low-light operation

Low operating voltage for embedded portable apps

Standard SCCB interface compatible with I2C interface

Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40x30

VarioPixel® method for sub-sampling

Automatic image control functions including: Automatic

Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance

(AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)

Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming

ISP includes noise reduction and defect correction

Supports LED and flash strobe mode

Supports scaling

Lens shading correction

Flicker (50/60 Hz) auto detection

Saturation level auto adjust (UV adjust)

Edge enhancement level auto adjust

De-noise level auto adjust
