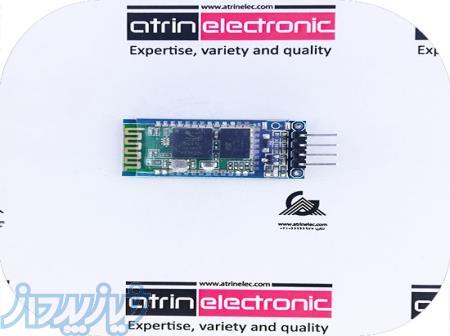

ماژول بلوتوث HC-06 and adapter
آگهی رایگان
بروزرسانی :
شنبه 21 مرداد 1402
ماژول بلوتوث با ارتباط سریال با پشتیبانی بلوتوث ورژن دو و EDR HC-06 and adapter Bluetooth Modules (802.15.1) BLUETOOTH-SERIAL-HC-06
دریافت دیتا شیت
User Instructional Manual
The HC-06 is a slave Bluetooth to serial adapter. It measures only 28mm x 15 mm x 2.35mm.
Possible baud rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Manufactured By Atomic Market
Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.
Works with any USB Bluetooth adapters.
Default Baud Rate: 9600,8,1,n.
Built in antenna.
Coverage up to 30ft.
Bluetooth version: V2.0+EDR
Operating voltage: 3.3V
Default Baud Rate: 9600,8,1,n.
Signal coverage: 30ft
Item size: 4.3 * 1.6 * 0.7cm
Item weight: 3g
Package size: 9 * 3 * 1cm
Package weight: 8g
Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.
With VCC.GND.TXD.RXD foot for the Bluetooth
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
Compatible with bluetooth master module".slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm
Note:
input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluetooth Function "
AT commands
Default settings of the HC-06:
Slave
9600, N, 8, 1
Name linvor
Pincode 1234
Command test
Sent: AT
Receive: OK
Change baud rate
Sent: AT+BAUD#
Receive: OKbaud
1: 1200
2: 2400
3: 4800
4: 9600
5: 19200
6: 38400
7: 57600
8: 115200
Example
Sent: AT+BAUD1
Receive: OK1200
Change device name
Sent: AT+NAMEname
Receive: OKname
Example
Sent: AT+NAMEblue
Receive: OKblue
Change pin code
Sent: AT+PINxxxx
Receive: OKsetpin
Example
Sent: AT+PIN9999
دریافت دیتا شیت
User Instructional Manual
The HC-06 is a slave Bluetooth to serial adapter. It measures only 28mm x 15 mm x 2.35mm.
Possible baud rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Manufactured By Atomic Market
Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.
Works with any USB Bluetooth adapters.
Default Baud Rate: 9600,8,1,n.
Built in antenna.
Coverage up to 30ft.
Bluetooth version: V2.0+EDR
Operating voltage: 3.3V
Default Baud Rate: 9600,8,1,n.
Signal coverage: 30ft
Item size: 4.3 * 1.6 * 0.7cm
Item weight: 3g
Package size: 9 * 3 * 1cm
Package weight: 8g
Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.
With VCC.GND.TXD.RXD foot for the Bluetooth
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
Compatible with bluetooth master module".slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm
Note:
input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluetooth Function "
AT commands
Default settings of the HC-06:
Slave
9600, N, 8, 1
Name linvor
Pincode 1234
Command test
Sent: AT
Receive: OK
Change baud rate
Sent: AT+BAUD#
Receive: OKbaud
1: 1200
2: 2400
3: 4800
4: 9600
5: 19200
6: 38400
7: 57600
8: 115200
Example
Sent: AT+BAUD1
Receive: OK1200
Change device name
Sent: AT+NAMEname
Receive: OKname
Example
Sent: AT+NAMEblue
Receive: OKblue
Change pin code
Sent: AT+PINxxxx
Receive: OKsetpin
Example
Sent: AT+PIN9999
آگهی دهنده
آترین الکترونیک- قیمت : 195,400
- تلفن :
- شهر :
- آدرس : تهران خیابان جمهوری بعد از پل حافظ پاساژ امجد طبقه اول واحد 16
