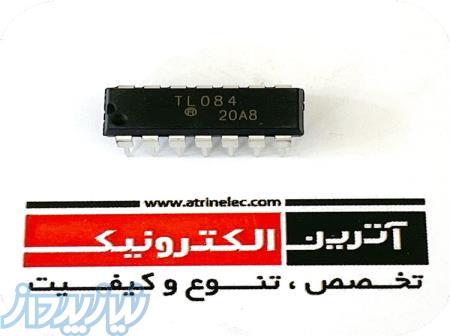

آیسی دوبل تقویت کننده دیپ 14 ای سی تقویت کننده،اپ امپ 2 تایی با پهنای باند 4 مگاهرتز و ولتاژ کاری 18± ولت General purpose JFET quad operational amplifiers,DIP-16
دریافت دیتا شیت
دریافت کتابخانه( ALITUM DESIGNER )
General purpose JFET quad operational amplifiers,DIP-16
آیسی دوبل تقویت کننده دیپ 14
آمپلی فایر دوبل
استفاده در انواع صنایع از جمله بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....
Features
¡ Wide common-mode (up to VCC
+) and
differential voltage range
¡ Low input bias and offset current
¡ Output short-circuit protection
¡ High input impedance JFET input stage
¡ Internal frequency compensation
¡ Latch up free operation
¡ High slew rate: 16 V/ƒÊs (typical)
Product Category: Operational Amplifiers - Op Amps
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package / Case: PDIP-14
Supply Voltage - Max: 36 V
Number of Channels: 4 Channel
GBP - Gain Bandwidth Product: 3 MHz
SR - Slew Rate: 13 V/us
CMRR - Common Mode Rejection Ratio: 70 dB to 86 dB
Ib - Input Bias Current: 200 pA
Vos - Input Offset Voltage: 6 mV
Supply Voltage - Min: 7 V
Operating Supply Current: 1.4 mA
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Shutdown: No Shutdown
Series: TL084
Packaging: Tube
Amplifier Type: General Purpose Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
en - Input Voltage Noise Density: 18 nV/sqrt Hz
Height: 4.57 mm
In - Input Noise Current Density: 0.01 pA/sqrt Hz
Input Type: Rail-to-Rail
Length: 19.3 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3.5 V
Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V
Product: Operational Amplifiers
Factory Pack Quantity: 25
Supply Type: Single, Dual
Technology: BiFET
Vcm - Common Mode Voltage: Negative Rail + 4 V to Positive Rail - 4 V
Voltage Gain dB: 106.02 dB
Width: 6.35 mm
Unit Weight: 0.032734 oz
