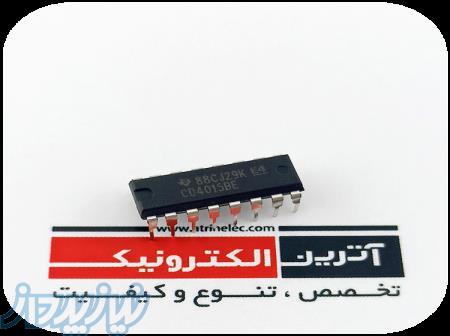

CD4015 CD4015BE

ای سی دارای دو شیفت رجیستر 4 بیتی Dual 4-Bit Static Shift Register



دریافت دیتا شیت

General Description

The CD4015BC contains two identical, 4-stage, serialinput/parallel-output registers with independent “Data”, “Clock,” and “Reset” inputs. The logic level present at the input of each stage is transferred to the output of that stage at each positive-going clock transition. A logic high on the “Reset” input resets all four stages covered by that input. All inputs are protected from static discharge by a series resistor and diode clamps to VDD and VSS

Features

Wide supply voltage range: 3.0V to 18V

(High noise immunity: 0.45 VDD (typ

Low power TTL: Fan out of 2 driving 74L compatibility: or 1 driving 74LS

Medium speed operation: 8 MHz (typ.) clock rate

Fully static design: @VDD − VSS = 10V

Applications

Serial-input/parallel-output data queueing

Serial to parallel data conversion

General purpose register
