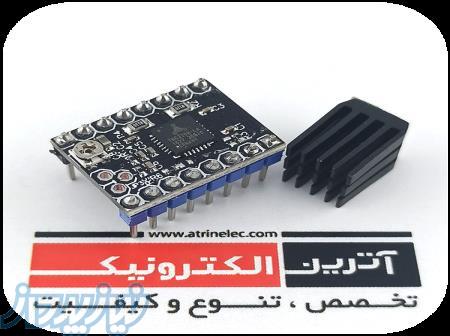

TMC2208 درایور استپ موتور - پرینتر سه بعدی

درایور استپ موتور 36 ولت 1.4 آمپر با قابلیت تنظیم حرکت موتور به صورت فول استپ،نیم پله و 1/4-1/8-1/16-1/32-1/64-1/128-1/256 پله با رابط سریال TMC2208 SilentStepStick stepper motor driver



دریافت دیتا شیت

The TMC2208 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop2™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2208 is capable of driving up to 2A of current from each output (with proper heatsinking). TMC2208 is designed for a supply voltage of 5...36V. The device has a step and direction interface and can be configured with digital pins

Main features
Compatible pinout with A4988 and DRV8825
Can drive up to 1.2A (RMS) continiously - 2A Peak
(Step / Dir interface with microsstep interpolation (up to 256 micro steps
Can be configured via CFG pins or using UART interface
Motor supply voltage: 5.5V-36V
Logic voltage: 3.3V-5V
Heat dissipation at the top for better cooling performances
(StealthChop2 : Smoother motions and Quiet operation (default settings
(SpreadCycle - (enabled via UART, see configurator
