الکتروویس مدل xi 1122a 85f - تهران

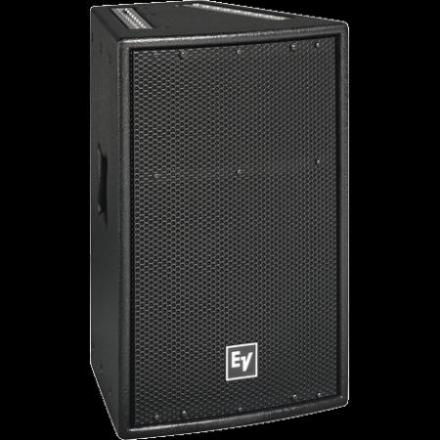

باند الکتروویس 12 اينچ مدل ايكس اي 1122 اي 85 اف



Axial Sensitivity (SPL, 1 W @ 1 m) 99/110 dB LF/HF

Color Black, White, Unfinished

Directivity Index 10.9 dB (+1.2/-2.9 dB) 1200 - 16,000 Hz

Input Connections 2 four-pin Speakon

Long-Term Power Handling 300/75 W LF/HF

Short-Term Power Handling 1200/300 W LF/HF

Speaker Type Full-range

Frequency Response (-3 dB) 58 - 17000 Hz

Frequency Response (-10 dB) 50 - 19000 Hz

Internal Crossover No

Recommended High-Pass Frequency Dx46 preset Hz

Sensitivity 1 W/1 m 99 dB

Max. SPL/1m (calc) 130/135 dB LF/HF

Coverage (Nominal -6 dB) H 80 ° Const.-dir. horn

Coverage (Nominal -6 dB) V 55 ° Const.-dir. horn

Rotatable Horn No

LF Transducer 12-inch DL-type

LF Power Handling 300 Watts

HF Power Handling 75 Watts

LF Nominal Impedance 8 Ω

HF Transducer 1.4-inch ND6-16

HF Nominal Impedance 16 Ω

Crossover Frequency Dx46 preset Hz

Minimum Impedance 8.5/13.4 Ω LF/HF

Flying Yes

Outdoor No

Height 584 mm (22.99 )

Width 375 mm (14.76 )

Depth 356 mm (14.02 )

Weight Net 31.3 kg (69 lbs)
