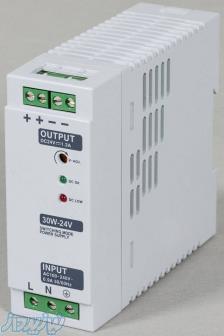

منبع تغذیه سوئیچینگ ریلی10 آمپر کره ای
منبع تغذیه سوئیچینگ تولید شرکت Orient کره با یکسال گارانتی و 10 سال خدمات پس از فروش
Universal AC Input ■ High Efficiency, High Reliability ■ Wide Temperature Range –25 to +70 °C ■ Output On / Low LED’s, Output Voltage Trim ■ Over Load, Over Voltage Protected ■ Full Approvals: UL/cUL/CE ■ 3 Year Warranty ■ Competitive Prices / From Stock
Specification Input Voltage (Universal)...........................................90~264 VAC, (127~370 VDC) Input Frequency........................................................ 47~63 Hz Inrush Current........................................................... Cold start, 40A Max at 230 VAC Input Input Current............................................................. 0.9 A @115 VAC, 0.6 A @ 230 VAC Load Regulation........................................................ +/-1% Line Regulation......................................................... +/-0.5% Output Voltage.......................................................... See table below (plus adjustment range) Over Load Protection................................................ 110~150% (auto-recovery) Over Voltage Protection............................................115 ~ 140% of output voltage Set Up, Hold Up Time……........................................560 ms, 20 ms Isolation Voltage....................................................... I/P-O/P: 3 kVAC, Operating Temperature.............................................-25~+70 °C (see derating curve) Safety Standards...................................................... UL, C-UL, CE, CB EMC Standards.........................................................FCC Part 15 Class B, VCCI-B, CLSPR22-B, EN55022-B Dimensions............................................................... 95(H) x 36(W) x 108 (depth from rail) mm Weight.......................................................................250g
